First at all, Whenever you mess with car electronics,

the first thing you need to do is to remove the negative terminal of your car’s battery,the best is remove both negative and positive.

Disclaimer:

all operations may be risky, so please ask professional do it or bear your own risk!!

We are not responsible for any risks or responsibilities!!

what will needs:

  1. SONY XAV-AX5000
  2. Scosche LPHA15 (Honda LINK+ Interface with Steering Wheel Control Retention)
  3. Scosche HA1714B ( 2012-Up Honda CRV ISO Double DIN & DIN+Pocket Dash Kit)
  4. Scosche HAA2B ( 2010-Up Honda Antenna Adapter)
  5. Electrical Tape + Electrical Industrial and Electrical Harness Wiring Friction Tape
  6. you need screwdriver and may need Car Panel Removal Tool too
  7. RCA Cable



Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图1Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图2



1. Take the old Head unit out https://www.youtube.com/watch?v=MtTw4DURgGw

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图3

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图4

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图5

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图6

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图7

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图8

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图9

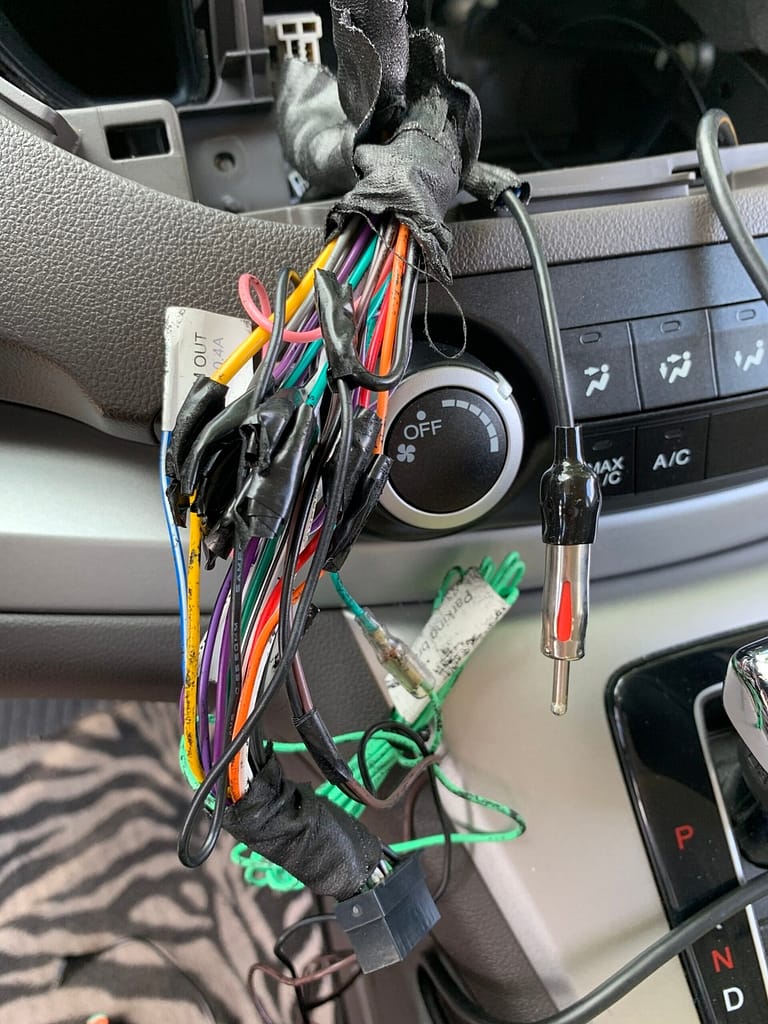

2. connect the cable from SONY AX5000 with Scosche LPHA15,it is basically matching the color of the cables together,and taped them.

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图10

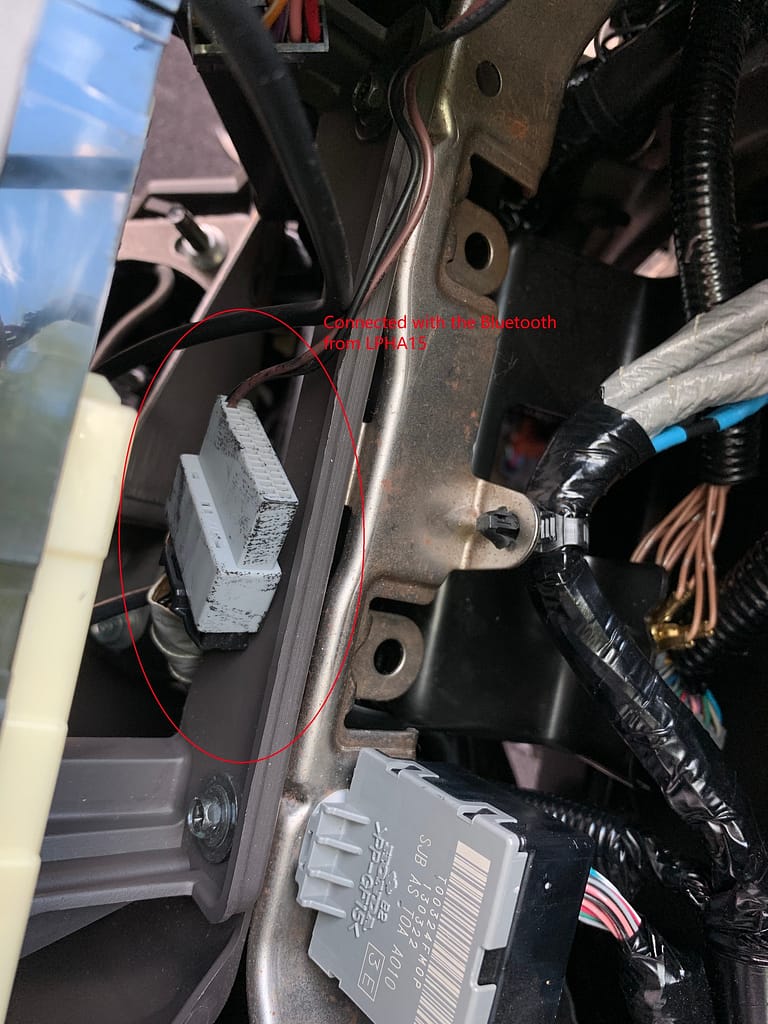

3. Connect the SONY AX5000 to CR-V (three connectors need to connect,left the white color one,because the SONY AX5000 has not connector match it. ),next you will need to remove the OEM Bluetooth connector from the Bluetooth Module and plug the  Bluetooth connector from Scosche LPHA15 to bypass the module. (the OEM Bluetooth Module’s location under the shift lever,part number 39775-T0A-A50),connect this Bluetooth then can you setup up the make call, hand up,voice buttons of the steering wheel control on SONY AX5000.

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图11

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图12

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图13

Once open the panel and bezel,you will see the Bluetooth Module inside like this following:

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图14

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图15Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图16

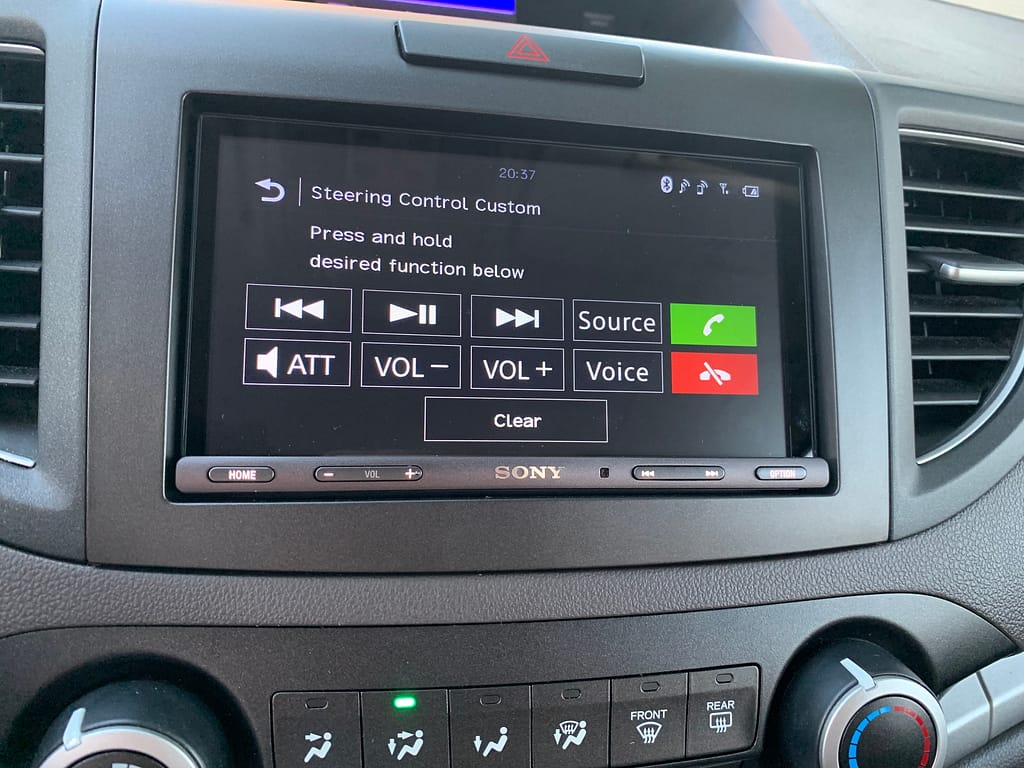

Now you will be able to set up the custom streering wheel control setting on SONY AX5000!!

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图17



At this point,the Rear View Camera still not shows on SONY AX5000 yet, you will need to spliting the Video cable from the Upper iMID small Display to connect to SONY AX5000,let’s do it!!

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图18

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图19

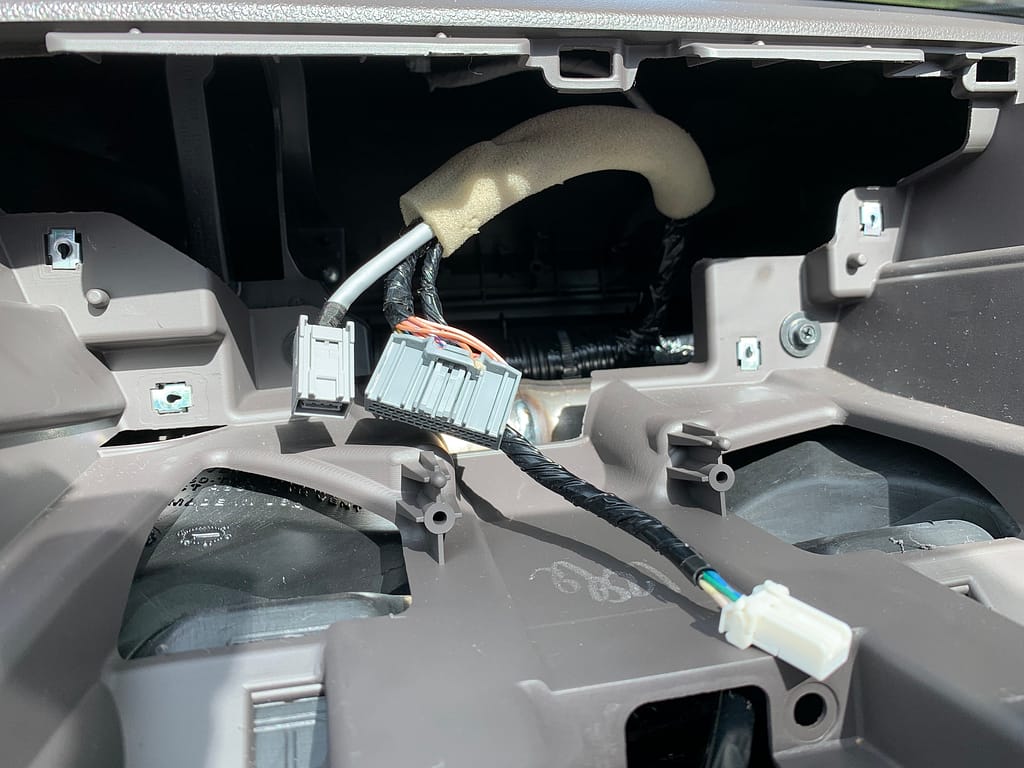

To spliting  a connector to SONY AX5000 from iMID Display. you will need a RCA cable, cut the RCA cable and get the wires ready, then tape the Vidoe Center wire to Pin#19 and the Ground wire to #18 from the 32 Pin Connector as picture above,final connect the RCA connector to SONY AX5000, Done!

As the picture follow, the #1 will connect to Pin#19, #2 will be connect to Pin#18!!

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图20

Here is the information posted by jacan20 from CRV Owner Club (Thanks so much for the information)

“I cut off one of the ends of the rca cable and stripped away some of the insulation. A rca video cable is comprised of a center cable (video positive) that is surrounded by many very thin ground wires. These ground wire are very fragile and annoying to work with; be very careful with them! Carefully twist only the ground wires together and crimp a male plug of a t-tap on it. Crimp another male end onto the center data positive wire.
Inside the car, attach the female part of a t-tap onto the wire that leads to pin 18. Attach another female part onto then wire that leads into pin 19.
The male plug from the surrounding grounding wires plugs into the female end on pin 18. The male plug from the center data positive plugs into 19. You don’t need to mess with pin 14.
The rca plug on the other end of the cable plugs into your new head unit.”

Or you can just buy a Camera Adapter Wire like this  to connecot it,

ebay link https://www.ebay.com/itm/Honda-CRV-2012-2016-Rear-View-Camera-Adapter-Wire-Harness-Cable-Video-Connector/362950875926?hash=item54818edb16:g:-WsAAOSwzAxedewV

Install Sony XAV-AX5000 for 2013 Honda CR-V EX-L (No Navigation version)插图21

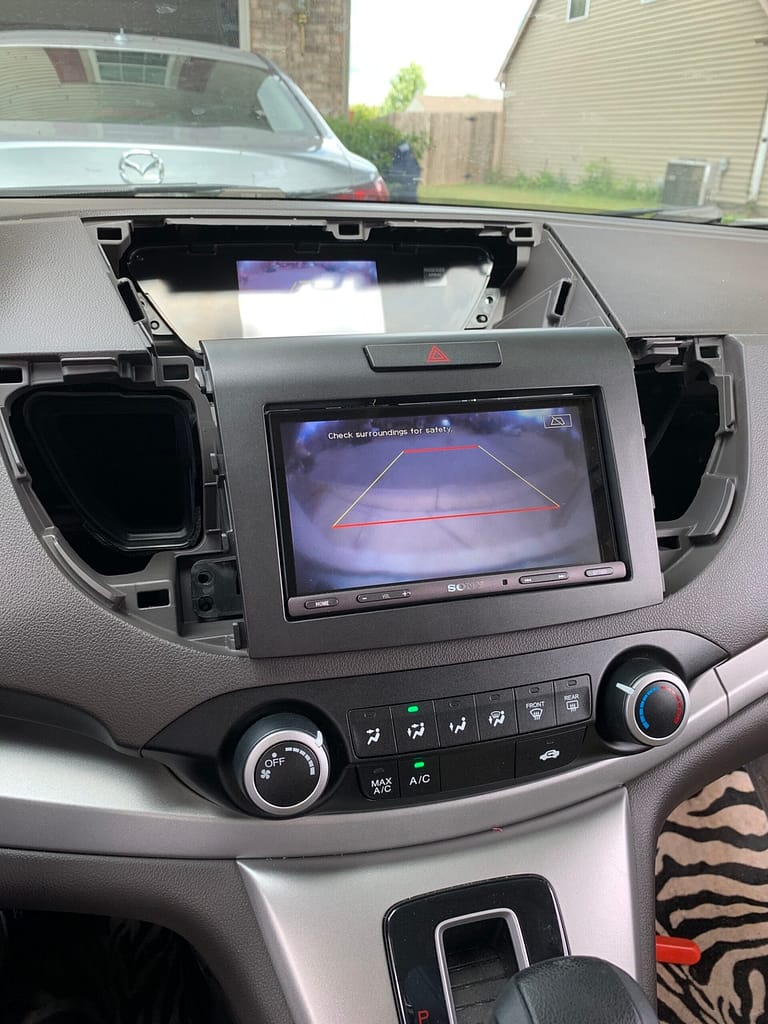

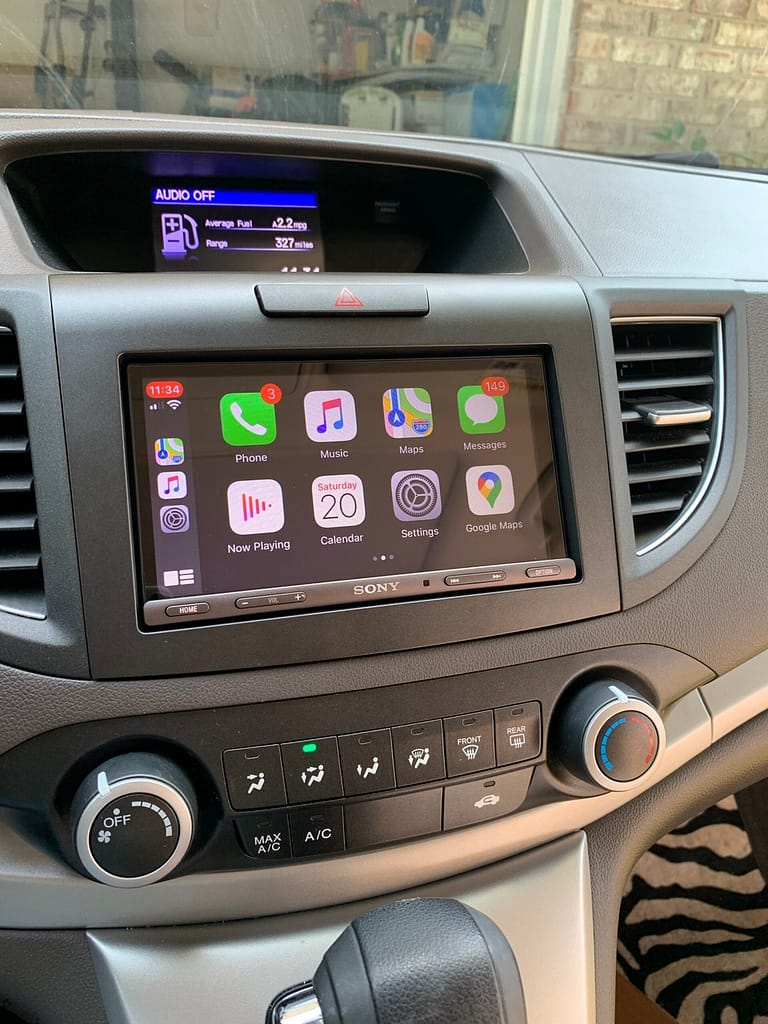

Here have some pictures from my work for this.
